Overhead Surface Mounted Door Closer with Slide Arm

surface mounted door closer Taiwan manufacturer

overhead surface mounted door closer Taiwan supplier

AM-98

Overhead Surface Mounted Door Closer

Description

Overhead Surface Mounted with Slide Arm Door Closer

Surface mounted type

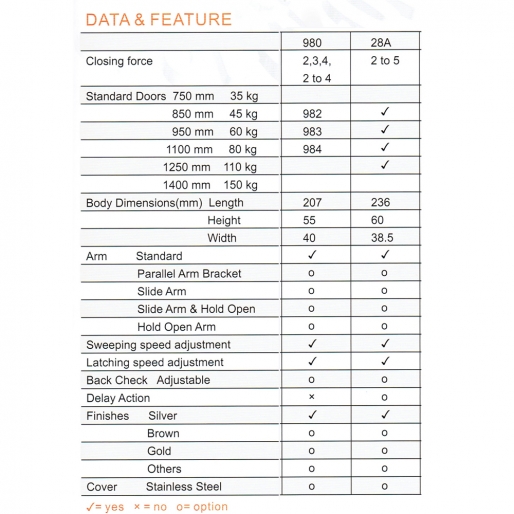

Body dimensions: 207 (L)* 55 (H)* 40 (W) mm
Power size: #2–4 adjustable by position / #3
Finish: Silver, white, black, brown coating finish
Loading capacity 40 to 80 kg/ 60 kg
Suit for 850 mm to 1100/ 950 mm width door
Parallel arm bracket (Optinal)
Back check (Optional)
Hold Open Arm (Optional)
Sliding track and arm (Optional)

Function:

1. Back Check

Back Check slows the door in the opening swing to help keep it from hitting an adjacent wall or having wind throw it out of your control. Back Check resistance should only be felt near the fully open position.

2. Delayed Action

This allows the door to remain open for a preset period of time before closing at an adjustable speed. Such a system will allow people in wheelchairs or the elderly to get through the door before it starts to close. This is also useful in areas where trolleys are used.

3. Hold Open

Is the ability of the door closer to hold the door in the open position. When hold open arm is fitted with the door closer, your door will remain open at a preset angle until it is closed manually.

Inquiry

Product Introduction

Features

Closing and latching speed adjustable
Suitable for internal and external door
Guarantee: 5 years/ 10 years (EN)
Our surface-mount door closers are a prevalent choice, attaching to doors or headers. They're highly durable and crafted to accommodate aluminum, metal, and wood doors. These closers feature dual valve control for closing and latching speed, and they can be easily installed in various ways—standard, top jamb, or parallel arm setups.

Safety/Quality Approvals

CERTIFICATION

CE certification, confirmed to EN 1154 and EN 1634 standard

UL certification, confirmed to UL 228 and ANSI/ UL 10 C standard

Related Information

Origin:	Taiwan
Brand:	Amex	Customized logo
Competitive Advantage:	High Quality Control	OEM available	Sample order acceptable
Payment Term:	T/T	L/C	Paypal

Overhead door closers that are surface mounted on the top surface of a door and designed to automatically close the door after it has been opened. It is ideal for commercial applications such as public buildings, schools, colleges and multi occupancy buildings to ensure that doors remain closed to control access, reduce energy costs, and maintain security.
