A-F5000P
Panic Bar Steel Painted Fire Rated
Description

Panic Exit Device, Painted (UL listed)

  • Grade 1
  • For Single door
  • 3H Fire rated, UL listed, steel painted
  • Push-type, Rim type
  • Non Handed – Completely Reversible
  • Available in various applications
  • Construction: Roll formed steel or stainless steel channel & Steel Chassis / Steel or Stainless Steel Head cover & End Cap

  • Finishes: Aluminum, Dark Bronze & US32D
  • Device Lengths: 33″ for 3′-0″ wide doors and 42″ for 3-8″ to 4′-0″ wide doors
  • Min. Door Width: 33″ & 42″ devices can be cut down to fit on 2-4″ wide door
  • Fasteners: Machine Screw
Product Introduction
Features
  1. UL Listed for Fire-exit Hardware
  2. UL Listed for 3 Hour Fire Doors
  3. UL : 500,000 cycle test

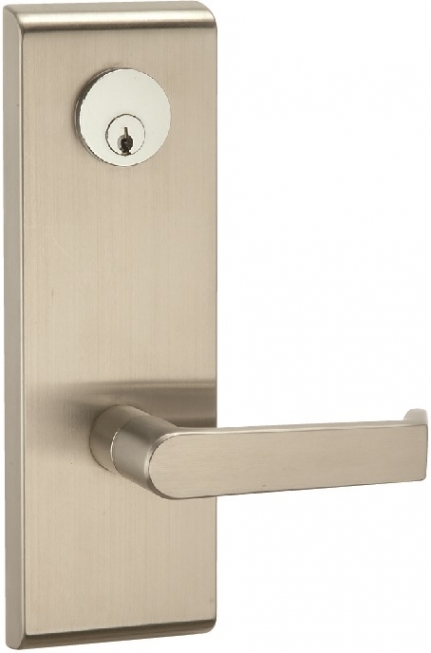

  4. Meets ADA requirements ANSI A117.1 with Lever Trim
  5. For door width: 33” and door height: 96”
  6. Without cylinder
Safety/Quality Approvals
CERTIFICATION
Meets ANSI A156.3 – Grade 1 Standards
Related Information
    Origin:  Taiwan
    Brand: Amex Customized logo
    Competitive Advantage: High Quality Control OEM available Sample order acceptable
    Payment Term: T/T L/C Paypal

    Panic hardware, also known as exit devices, crash bar, door push bar and touch bar, is designed for quick and easy building evacuation during emergencies. These devices unlock doors leading outside when needed, and they are mandated by building codes and local fire departments in many public spaces.
