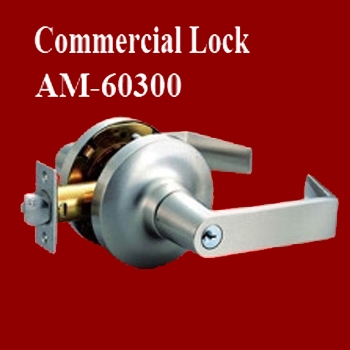

Heavy Duty Cylindrical Leverset AM-60300

AM-60300

Heavy Duty Cylindrical Leverset

Entry /US26D
Door Thickness: 1-3/8” ~ 2” (35mm ~ 51mm)
Backset: 2-3/4” (70mm, standard), 2-3/8” (60mm), 3-3/4" (95mm), 5.0” (127mm)
Latch: Stainless steel powder metallurgy latch bolt with 1/2" (12.7mm) throw. Anti-friction fire door latch with 3/4"
(19mm) throw also available.
Cylinder: 6 pin solid brass cylinder. Schlage "C" Keyway standard. Small Format Interchangeable Core cylinder also
available upon request.

Inquiry

Heavy Duty Cylindrical Leverset

Certification: ANSI/BHMA A156.2–2003 Grade 1 certified.
UL: 3 hours fire testing certified, UL file no. R13776.
Clutch Function: Outside lever can be freely rotated up and down while remaing securely locked in order to prevent damage to internal lock components caused by excessive force on lever to gain access.
Removable Through Bolt (optional): Bolts concealed in the lockset with easy installation not only ensure the strength of the whole mechanism but also disassemble easily.

Country of Origin: Taiwan

Brand: EZSET

Competitive Advantages: Customer's Design and Logo are Welcome,Small Order Acceptable,ODM Accepted,OEM Accepted

Sales Method: Export,Manufacture

Payment Terms: T/T,L/C
