A-F5000S
Panic Exit Device Stainless Ssteel Fire Rated
Description

Panic Exit Device, S.S. (UL listed)

  • Grade 1
  • For Single door
  • 3H Fire rated, UL listed, Stainless steel
  • Push-type, Rim type
  • Non Handed – Completely Reversible
  • Available in various applications
  • Construction: Roll formed steel or stainless steel channel & Steel Chassis / Steel or Stainless Steel Head cover & End Cap

  • Finishes: Aluminum, Dark Bronze & US32D

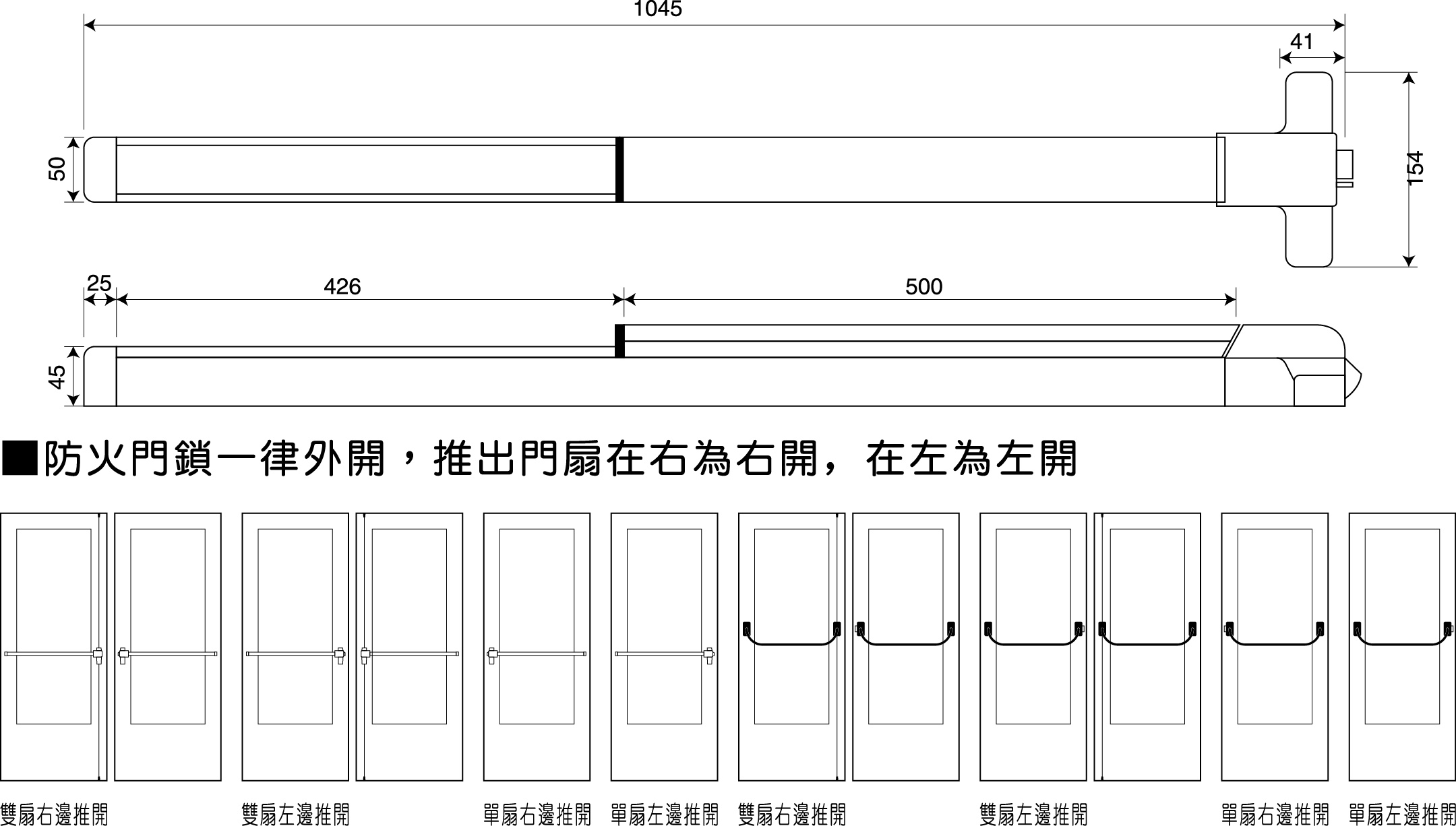

  • Device Lengths: 33″ for 3′-0″ wide doors and 42″ for 3-8″ to 4′-0″ wide doors
  • Min. Door Width: 33″ & 42″ devices can be cut down to fit on 2-4″ wide door
  • Fasteners: Machine Screw
Product Introduction
Features
  1. UL Listed for Fire-exit Hardware
  2. UL Listed for 3 Hour Fire Doors
  3. UL : 500,000 cycle test
  4. Meets ADA requirements ANSI A117.1 with Lever Trim
  5. For door width: 33” and door height: 96”
  6. Without cylinder
Safety/Quality Approvals
CERTIFICATION
Meets ANSI A156.3 – Grade 1 Standards
Related Information
    Origin:  Taiwan
    Brand: Amex Customized logo
    Competitive Advantage: High Quality Control OEM available Sample order acceptable
    Payment Term: T/T L/C Paypal

    We are leading suppliler of Panic push devices and exit trims, and we assure great quality and high standards for our products.
